SKU:T451514-1
SPP lashing trough double + counter plate 146x106mm
SPP lashing trough double + counter plate 146x106mm
Out of stock

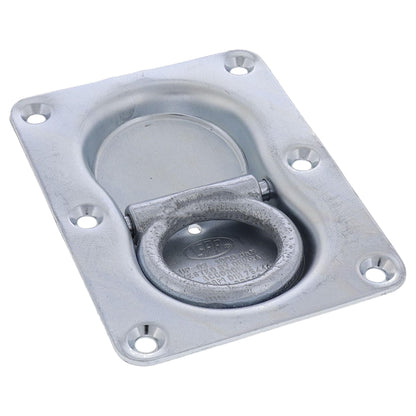

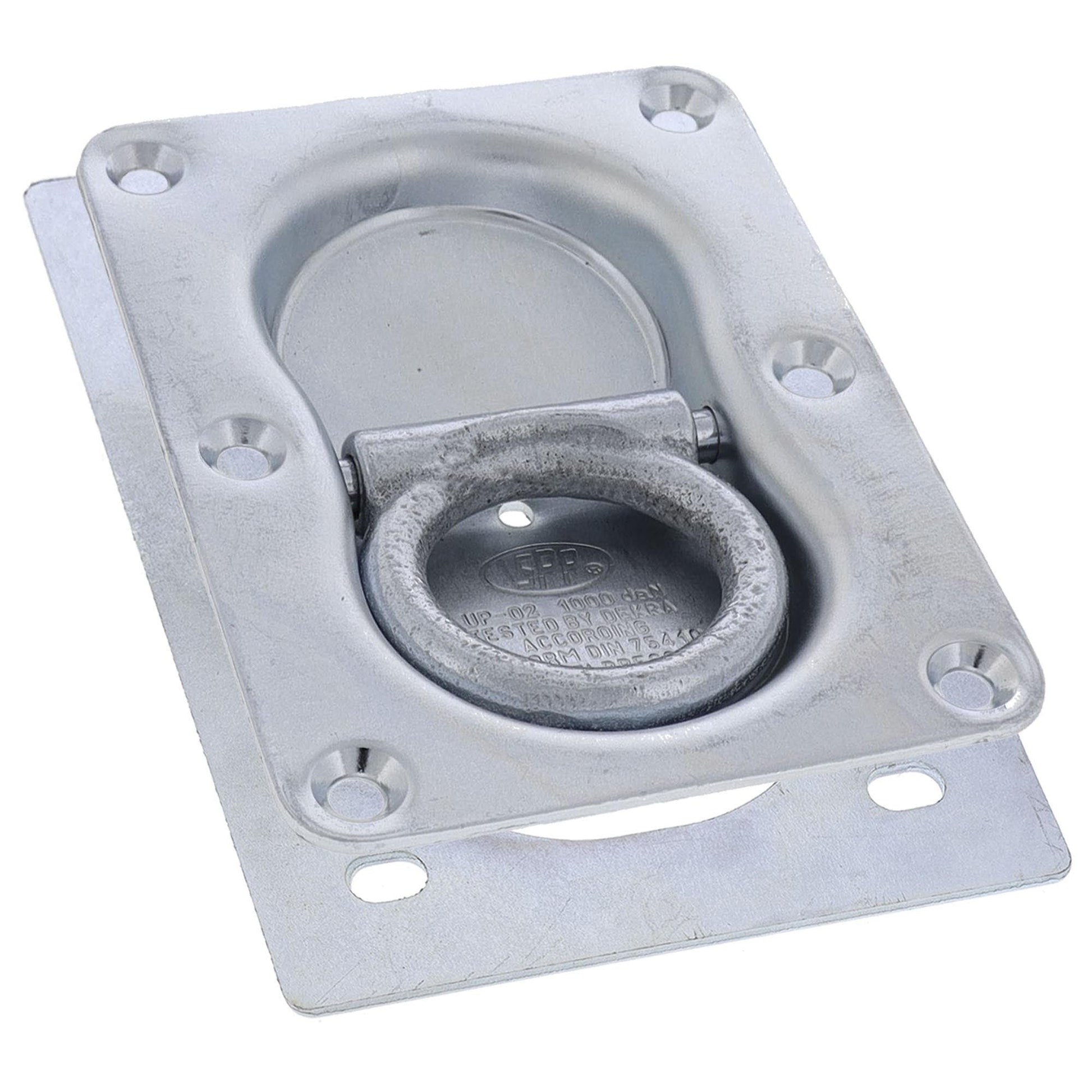

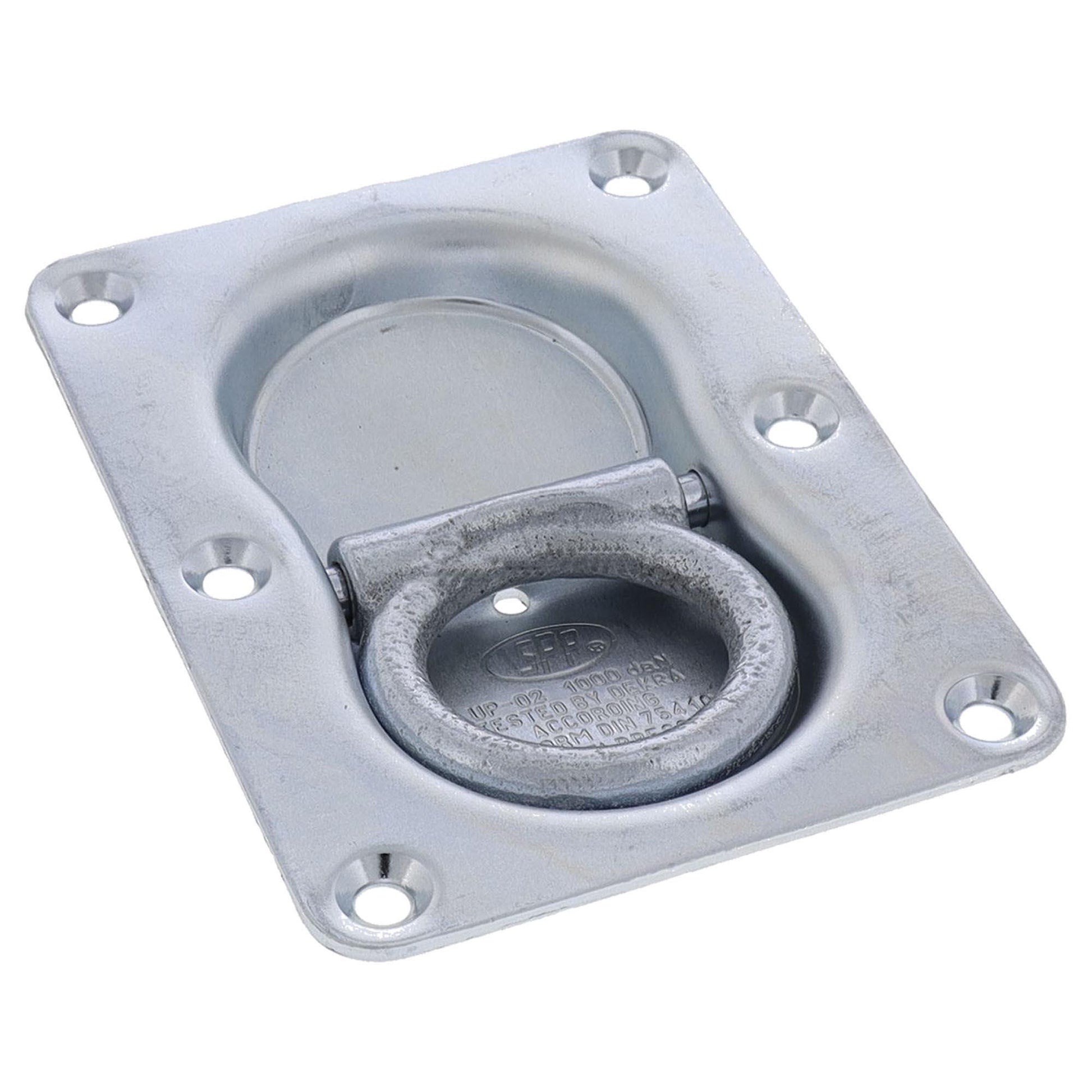

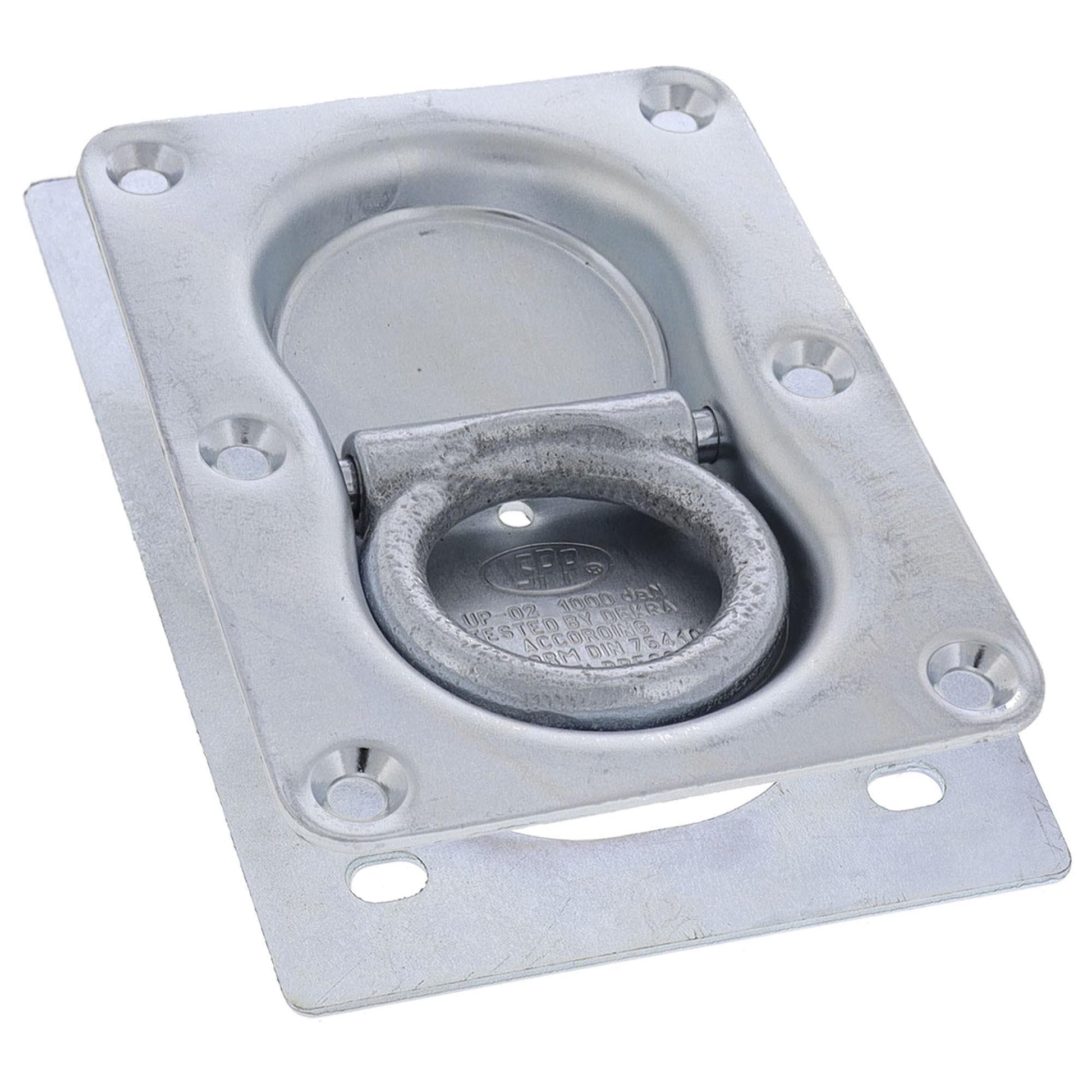

SPP trailer lashing trough including counter plate
1000 kg (daN) according to DIN 74410

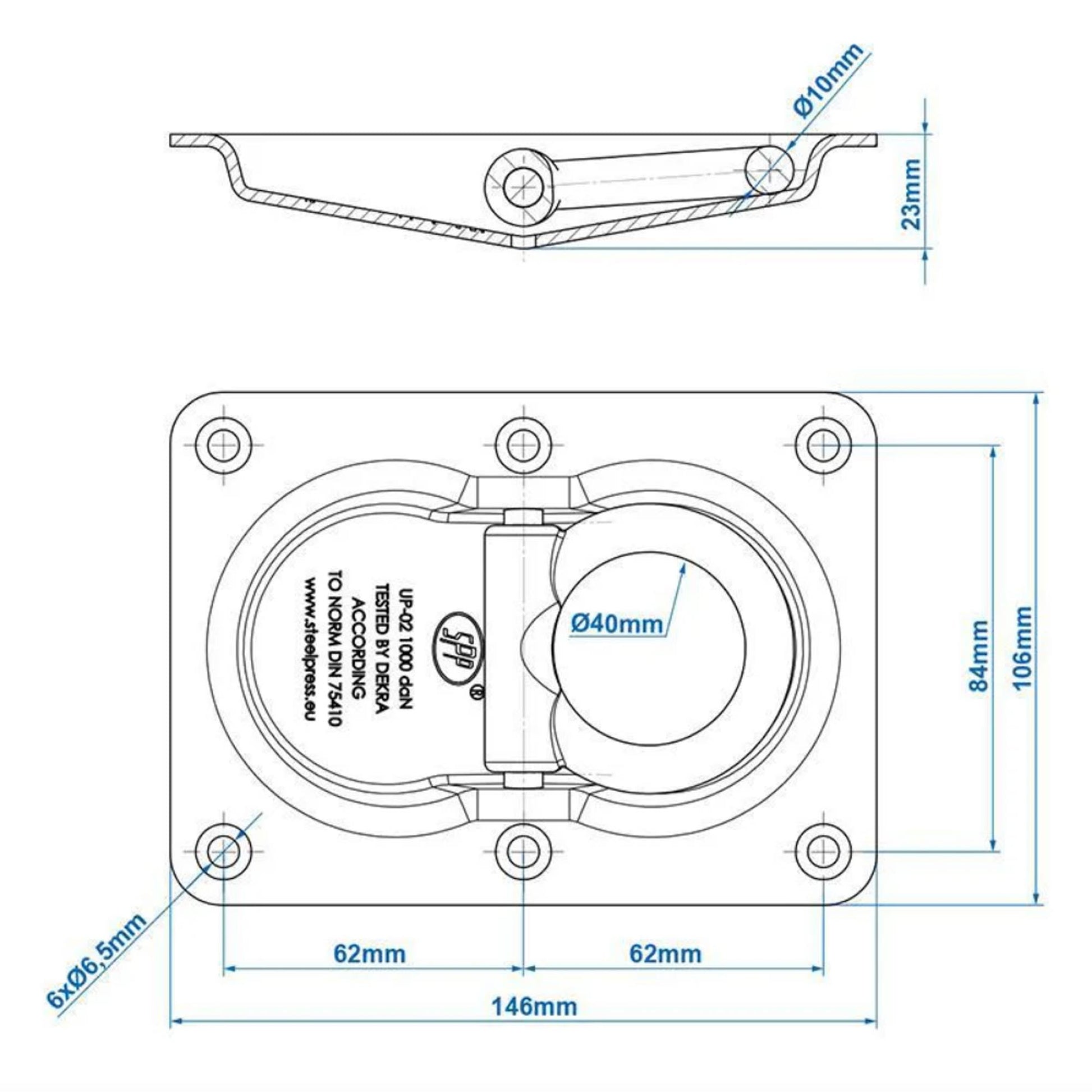

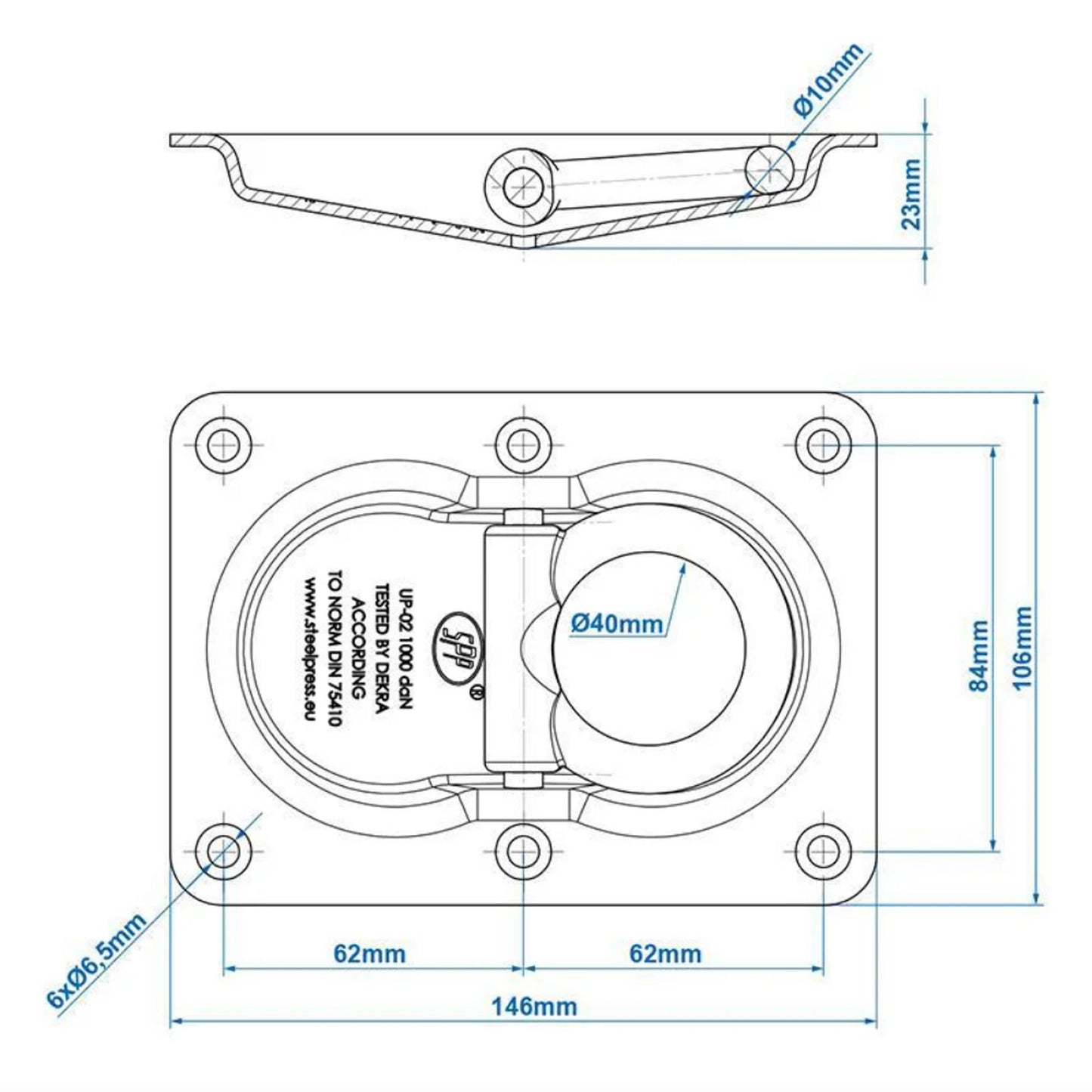

Details lashing tray:
- for loading areas of all kinds
- Material: galvanized steel
- with foldable ring (approx. 170 degrees)
- Tensile load: 1000 kg (daN) according to DIN 74410
- Dimension: approx. 146 x106 mm
- Installation depth: approx. 25 mm
- Holes: approx. 6.5mm
- Hole spacing: approx. 84mm (horizontal) and approx. 62mm (vertical)
- 6mm hole for water drainage

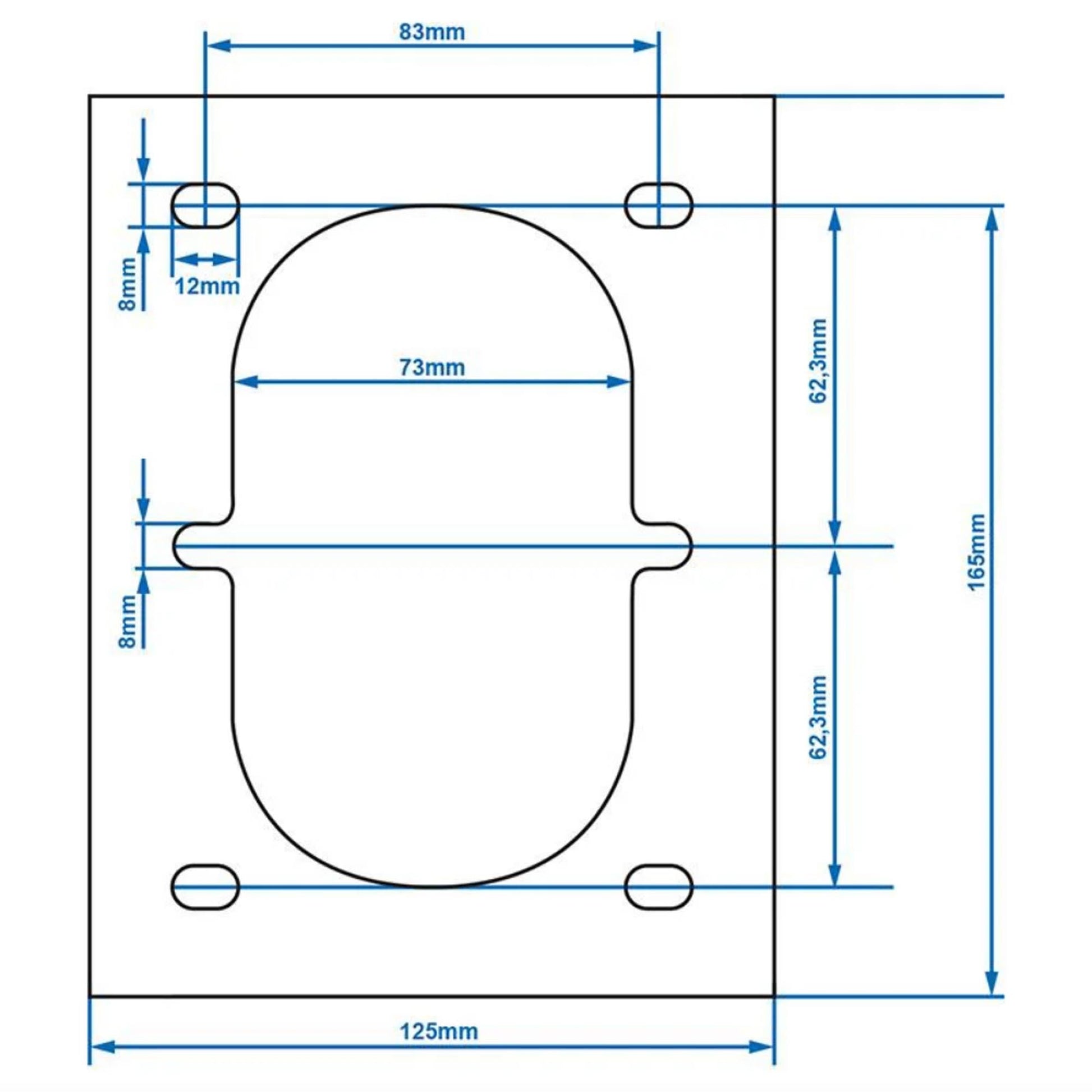

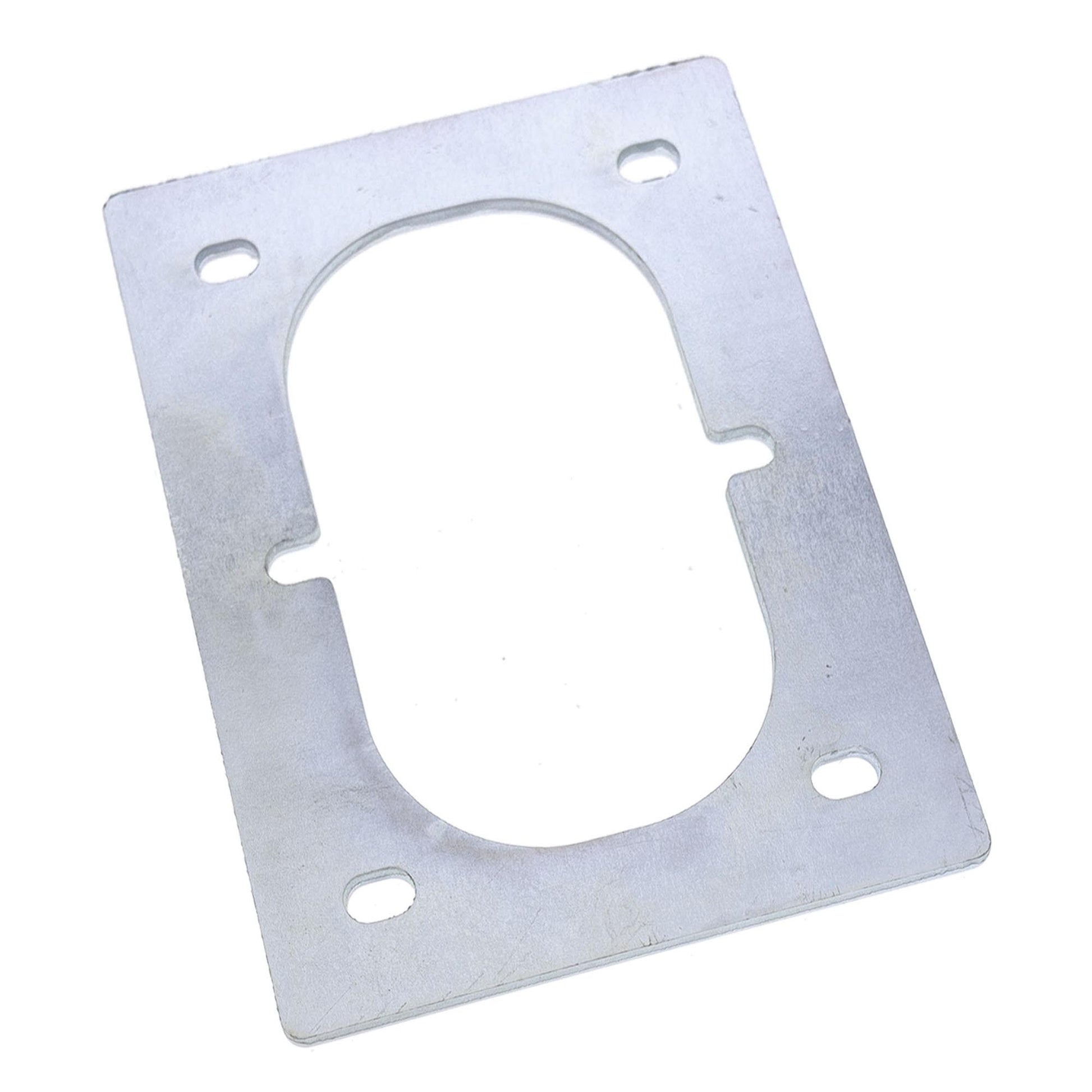

Counterplate details:
- Material: galvanized steel
- Dimensions: approx. 165 x 125 mm
- Holes: approx. 12 x 8mm
- Hole spacing: approx. 83mm (horizontal) and approx. 125mm (vertical)
If you have any questions, please contact us.
-
