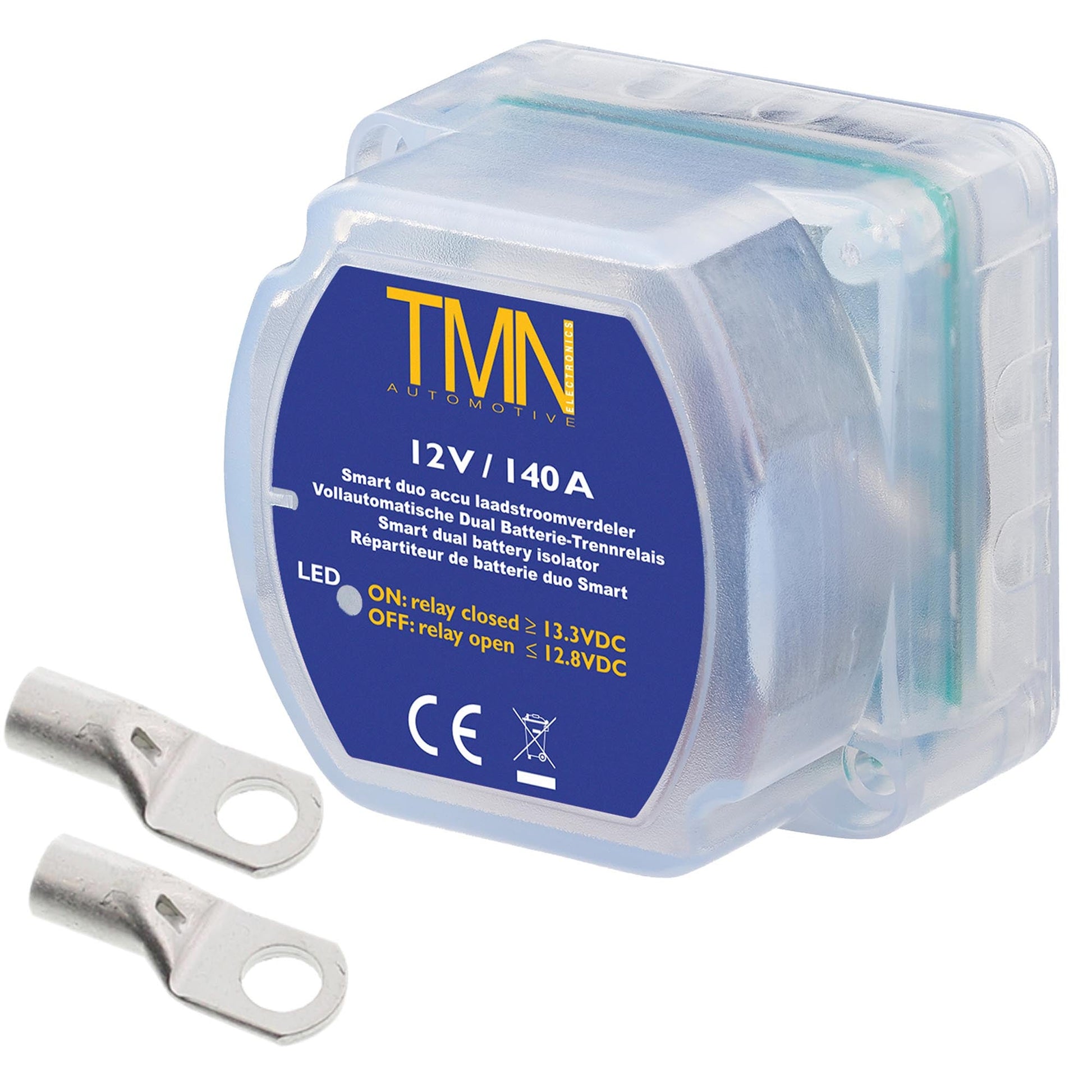

BSR battery cut-off relay 12V 140 amps + 2 eyelets 25mm² M6

BSR battery cut-off relay 12V 140 amps + 2 eyelets 25mm² M6

Regular price 30,95 €*
Regular price 0,00 €* Sale price 30,95 €*
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

TMN Automotive

Fully automatic dual isolation relay

+ 2 eyelets 25mm² M6

12 volts / 140 amps continuous load


Purpose:

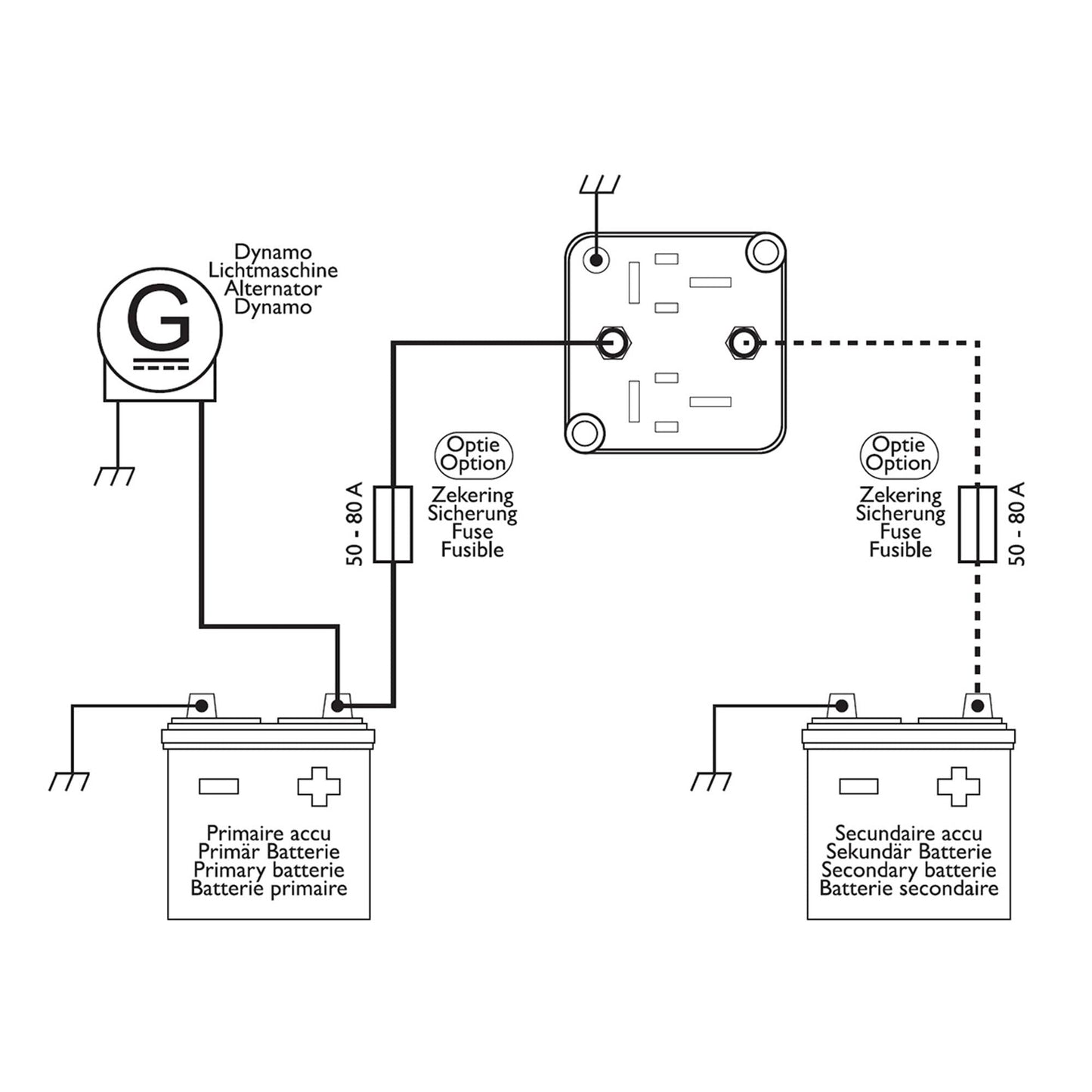

If a second or (secondary) additional battery is to be installed in a vehicle, the installation of an isolation relay is highly recommended.

The purpose of installing this relay is to ensure that the connection between the two batteries is separated when the engine is switched off and the voltage falls below 12.8V. This ensures that the starter battery is not discharged if further energy is drawn from the additional battery.

When the engine is switched on, the charging voltage increases to over 13.3V (alternator control voltage ≥ 13.4), as a result of which the isolating relay closes the circuit and the starter and auxiliary batteries are charged simultaneously. The same applies if the charging voltage of the auxiliary battery increases to over 13.3V due to a connected charger or an installed solar system. This BSR isolating relay therefore works bidirectionally in both directions.

This relay is suitable for CAN bus vehicles. No alternator control voltage d+ or ignition plus is required.


Application areas:

  • car
  • buses
  • CarHifi
  • boats
  • Caravan and Camping
  • solar applications etc.

Product features of isolating relays:

  • Continuous load: max. 140 amps
  • Case color: Transparent
  • Status lighting / color: Yes / Green
    • Status light ON: Voltage above 13.3 VDC (circuit is closed)
    • Status light OFF: Voltage below 12.8V DC (circuit is open)
  • Voltage: 12V
  • Dimensions: (LxWxH) approx. 67x67x53mm
  • Connections: 2x battery screw connections + 1x ground cable

Product features of eyelets:

  • Material: copper
  • electronically galvanized
  • for cable Ø: 25mm²
  • with viewing hole M6
  • not isolated

If you have any questions, please contact us.
