Turning support 520-900mm foldable 1000kg with screw flange + screw set

Turning support 520-900mm foldable 1000kg with screw flange + screw set

Regular price 55,95 €*
Regular price 0,00 €* Sale price 55,95 €*
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

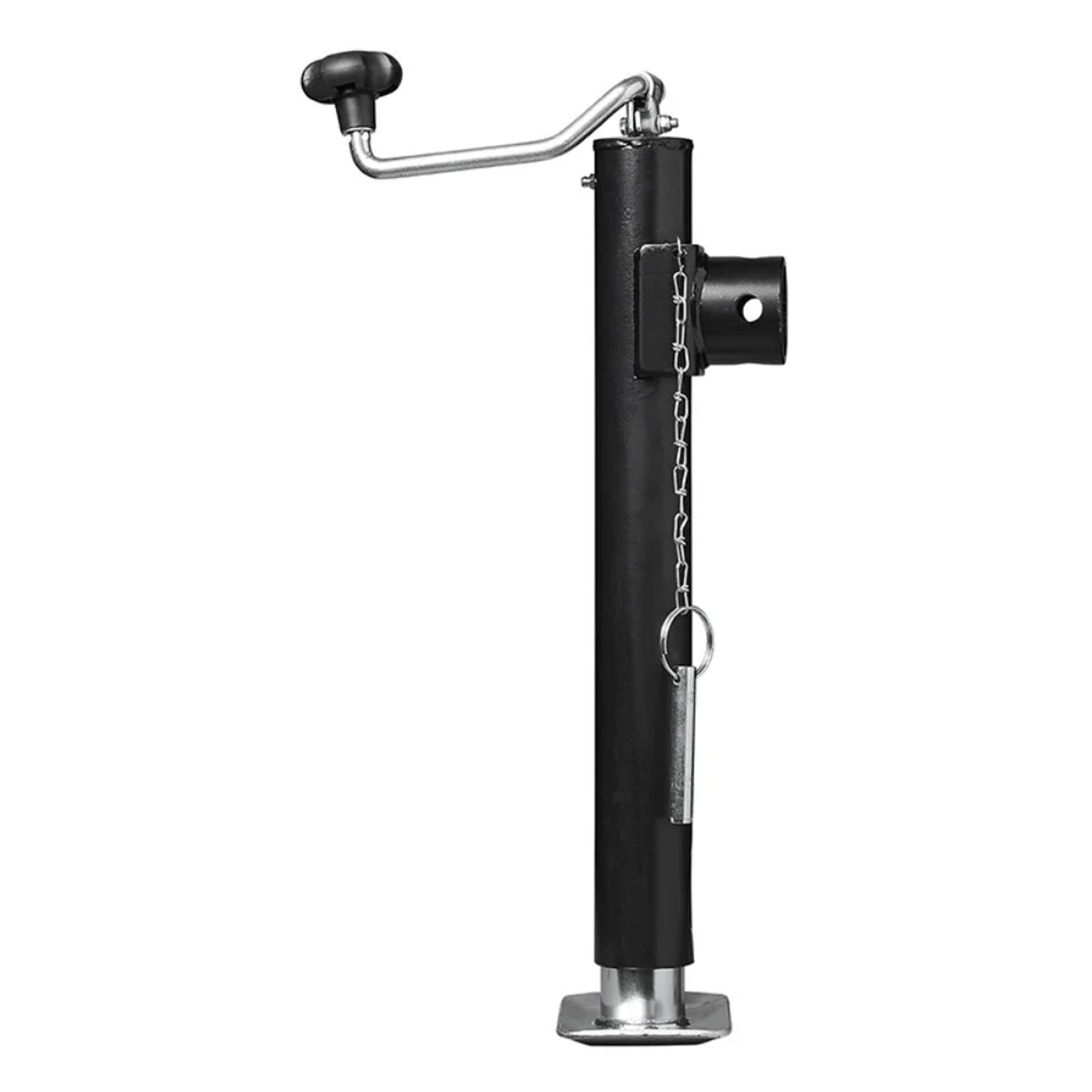

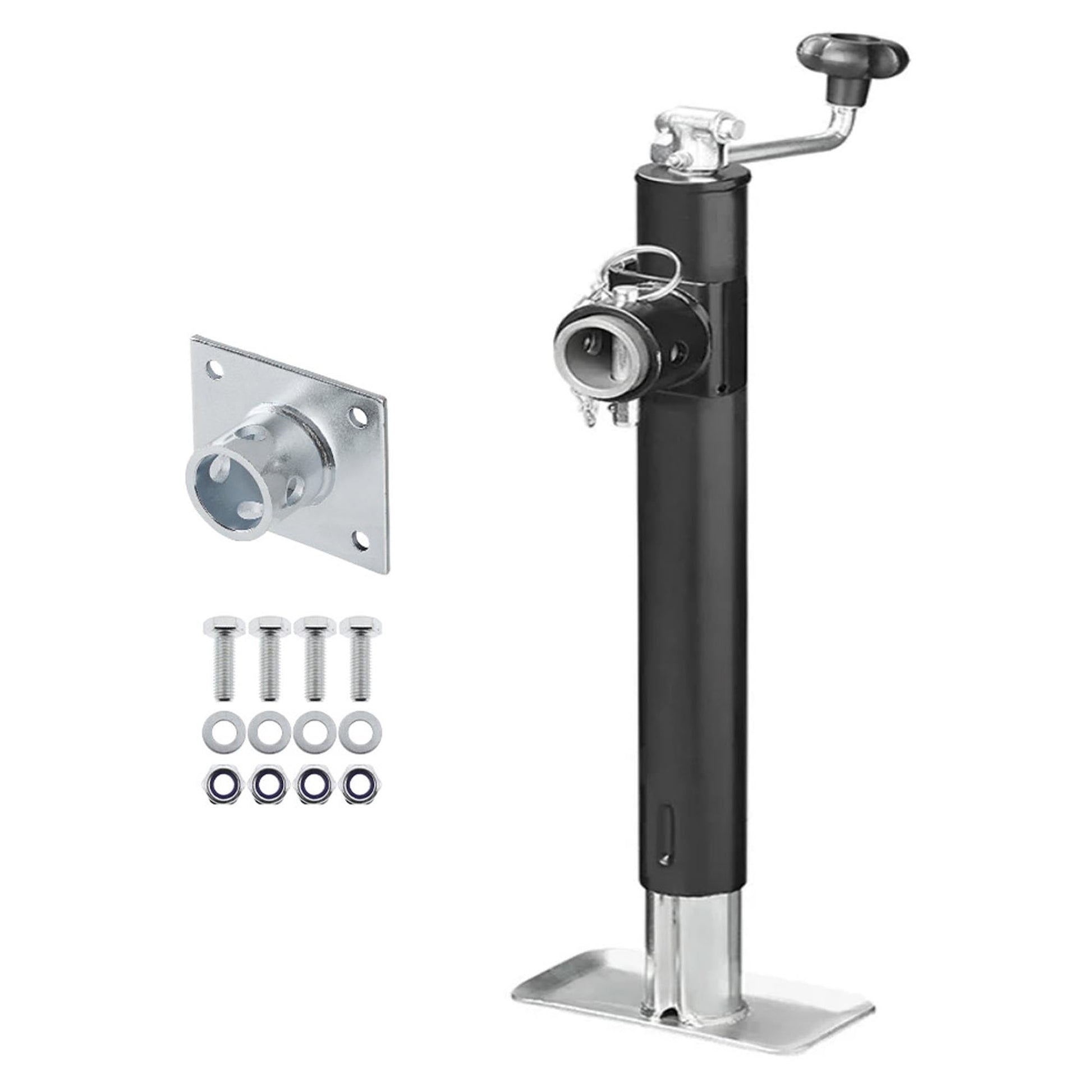

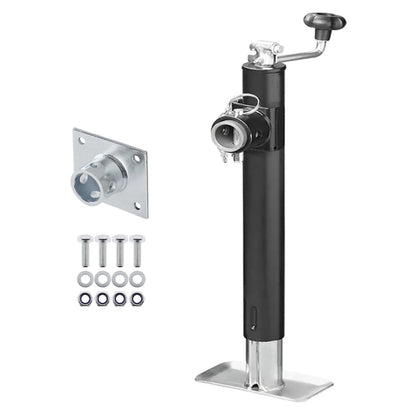

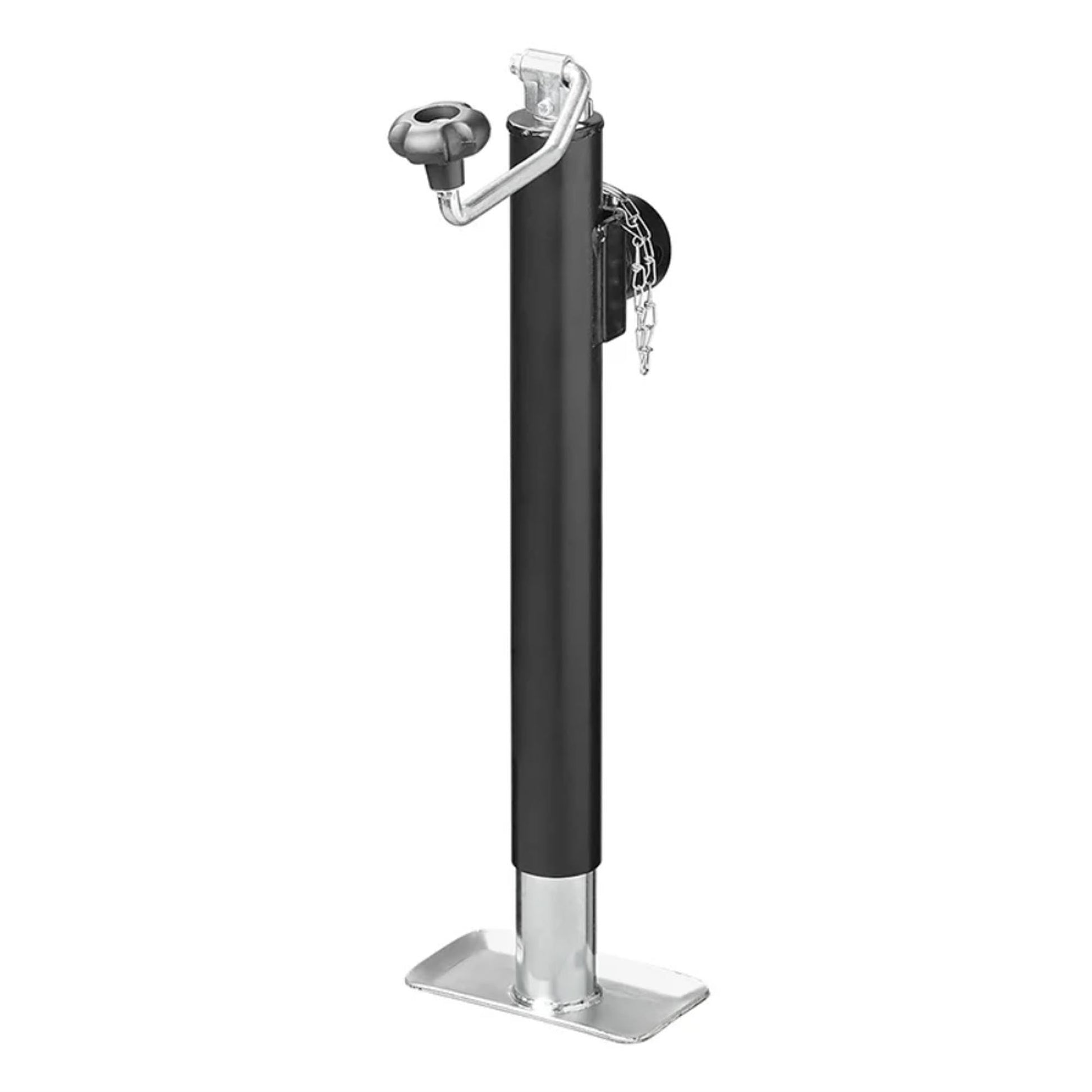

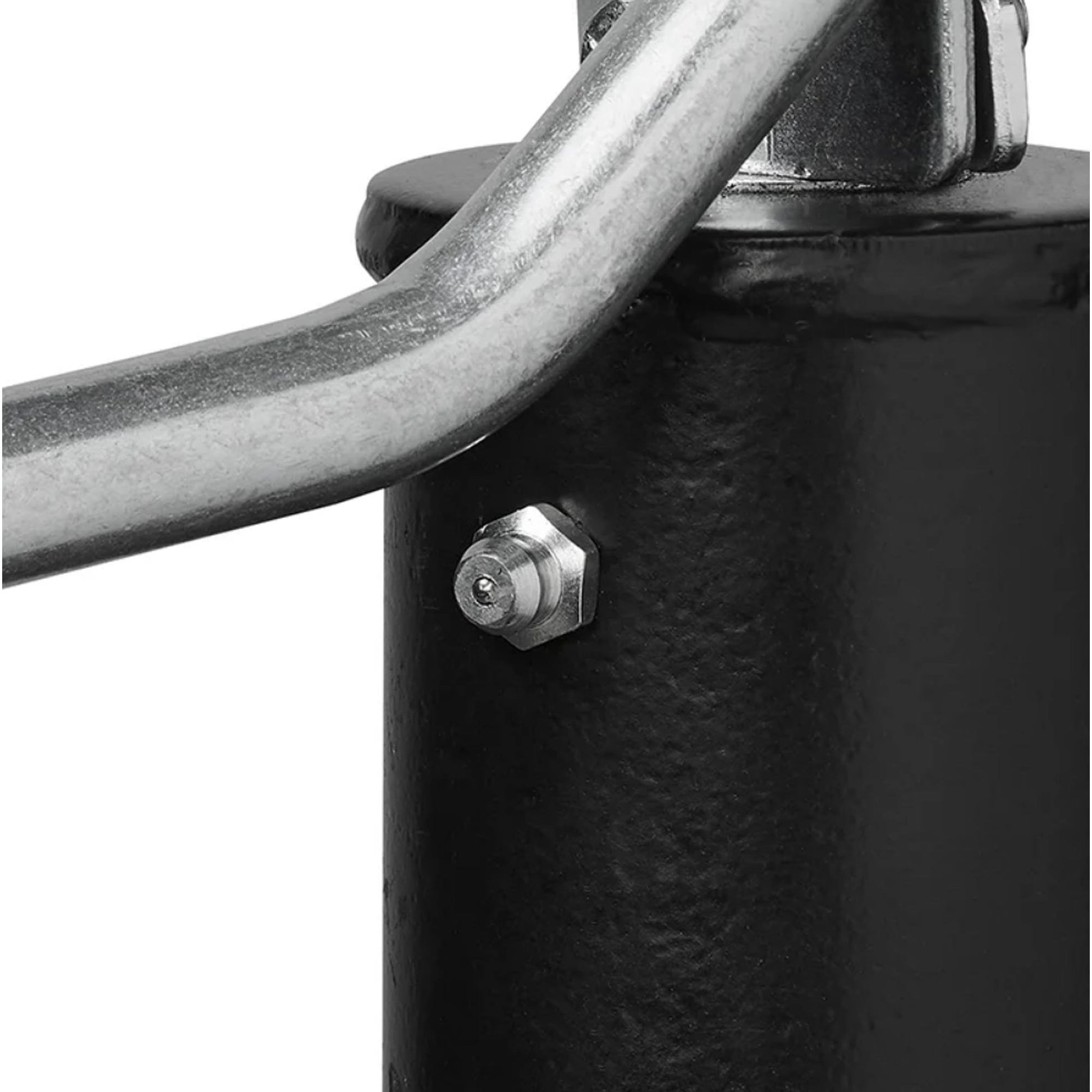

Turning support with hand crank + screw flange including screw set

Tube Ø: approx. 57mm / vertical load: 1000kg

Min - Max Height: 52-90cm

for passenger cars and agricultural trailers/trailers

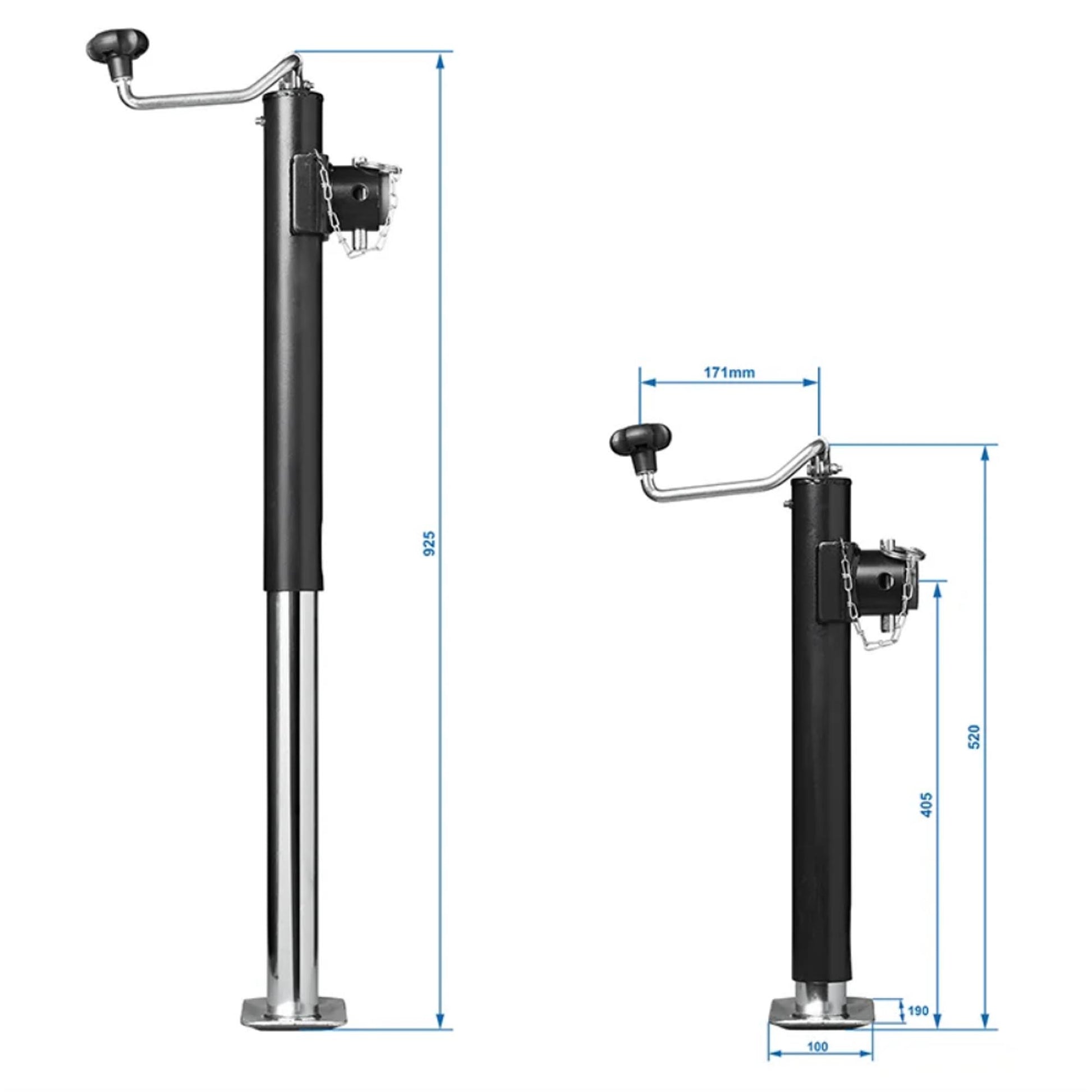

Details support:

  • Height: about 520-900mm
  • Tube Ø: approx. 57mm
  • Support load max.: 1000kg
  • Dimensions base plate: approx. 180x100mm
  • With top loop (not removable)
  • Rotatable and foldable
  • Material: Galvanized/powder-coated steel
  • including safety bolts
  • with flange for welding
  • including safety bolts
  • with screw-on flange

Details pipe flange for welding:

  • Material: galvanized steel
  • Assembly: for welding
  • Dimensions: (ØxL) approx. 50x60mm
  • Bore diameter: approx. 16mm

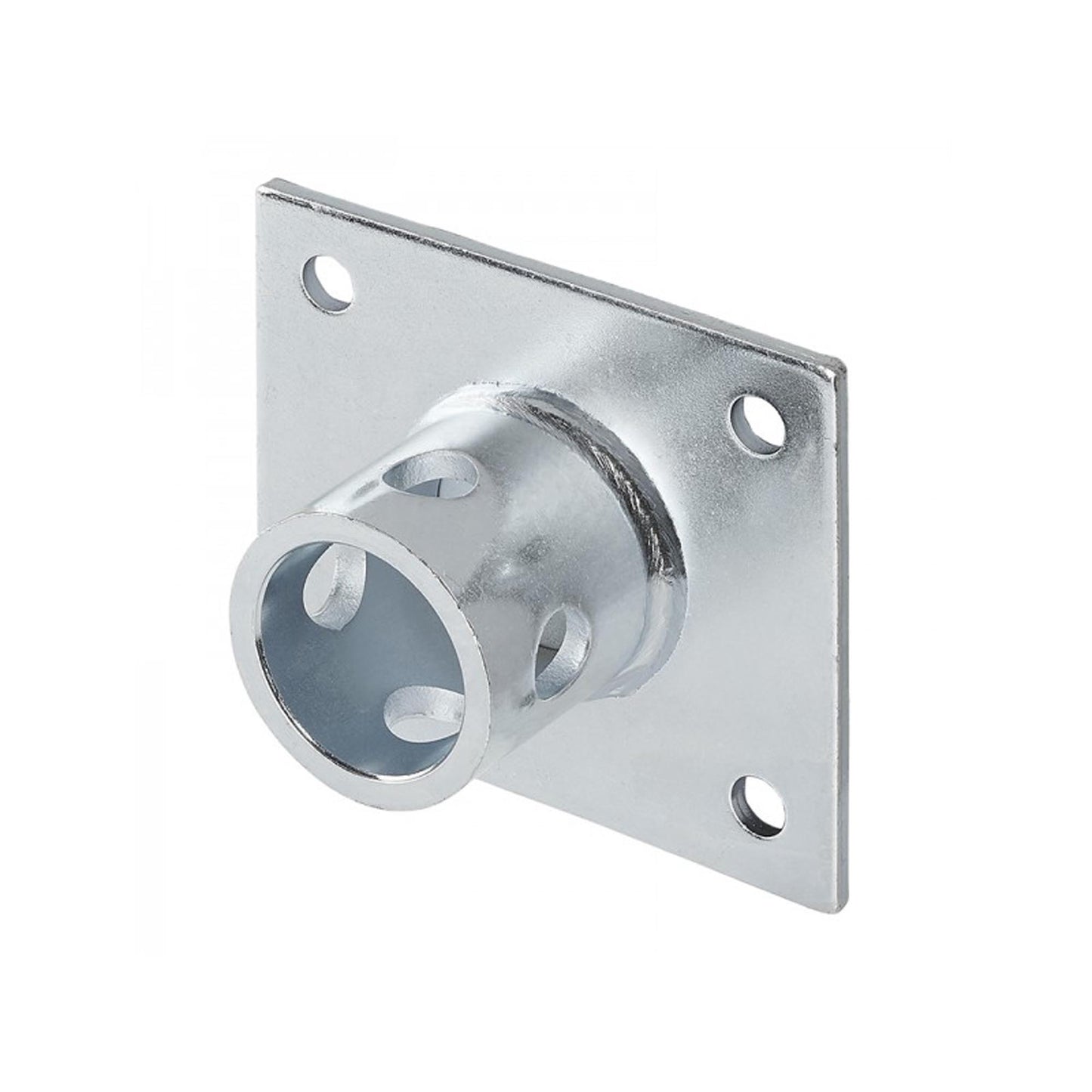

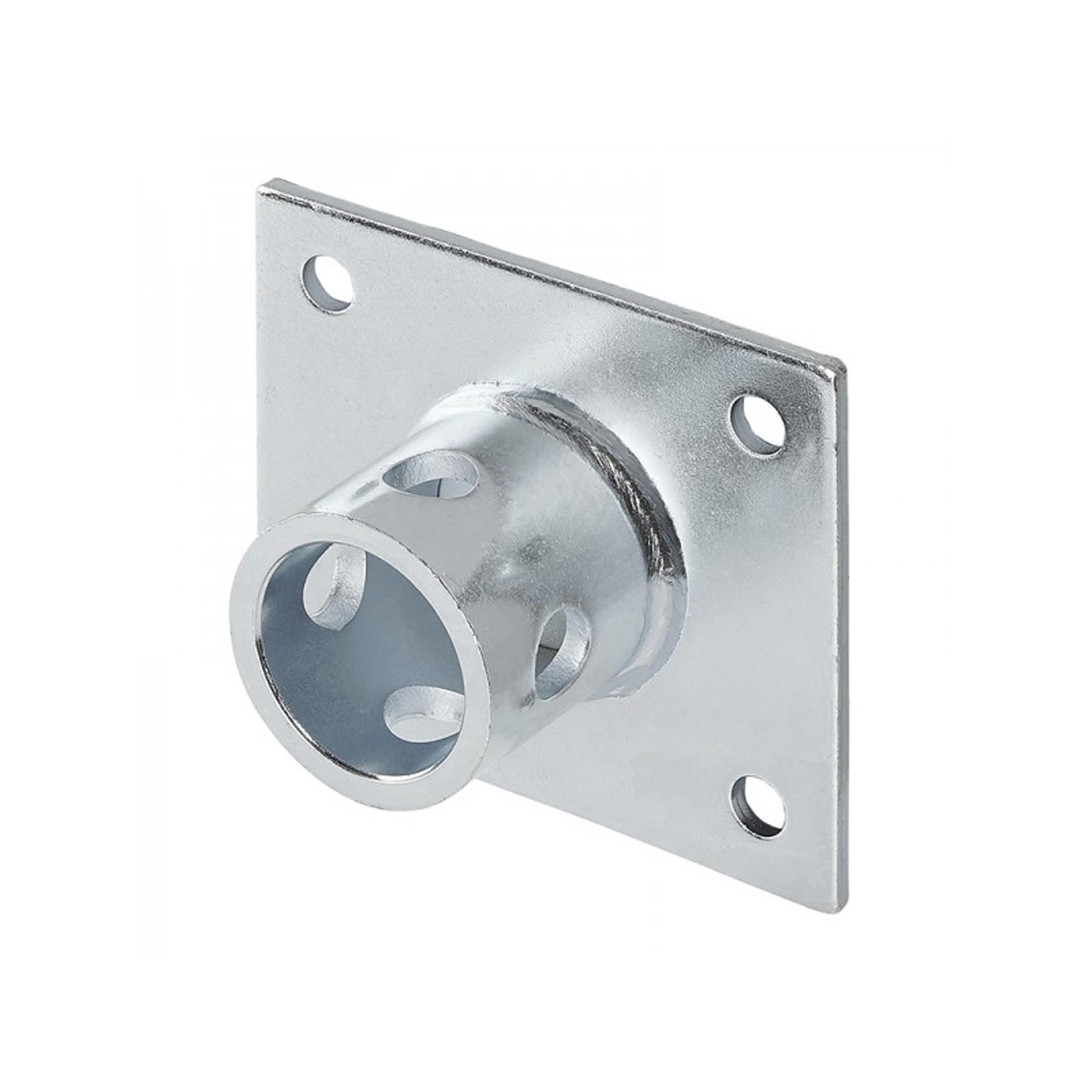

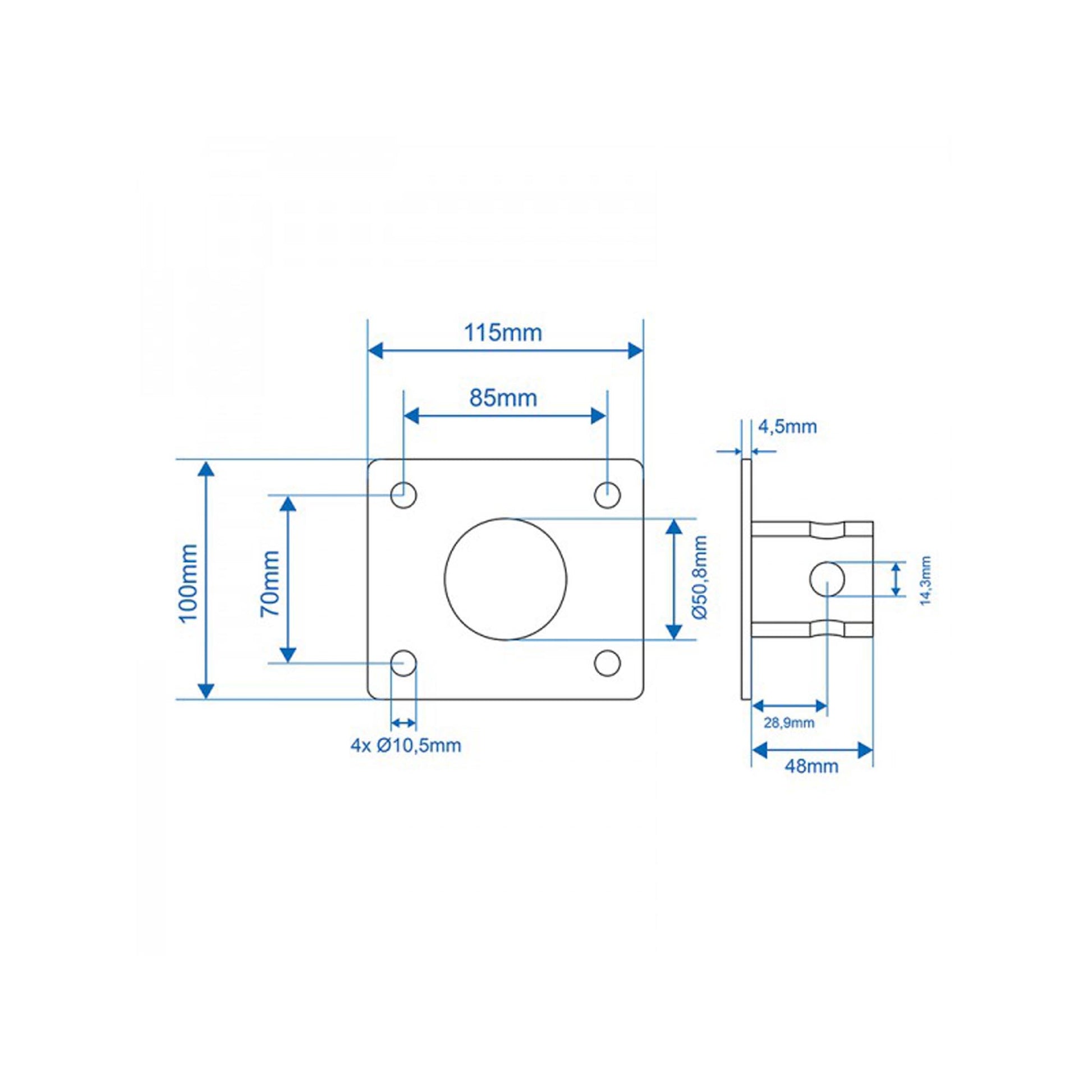

Details screw flange:

  • Material: galvanized metal
  • Mounting type: screwed
  • Mounting hole Ø: 10mm
  • Dimensions: length 115mm x width 100mm
  • Height: 52mm
  • Mounting Ø: 50mm
  • Bore in mounting Ø: 15mm
  • Hole spacing: 85/70mm

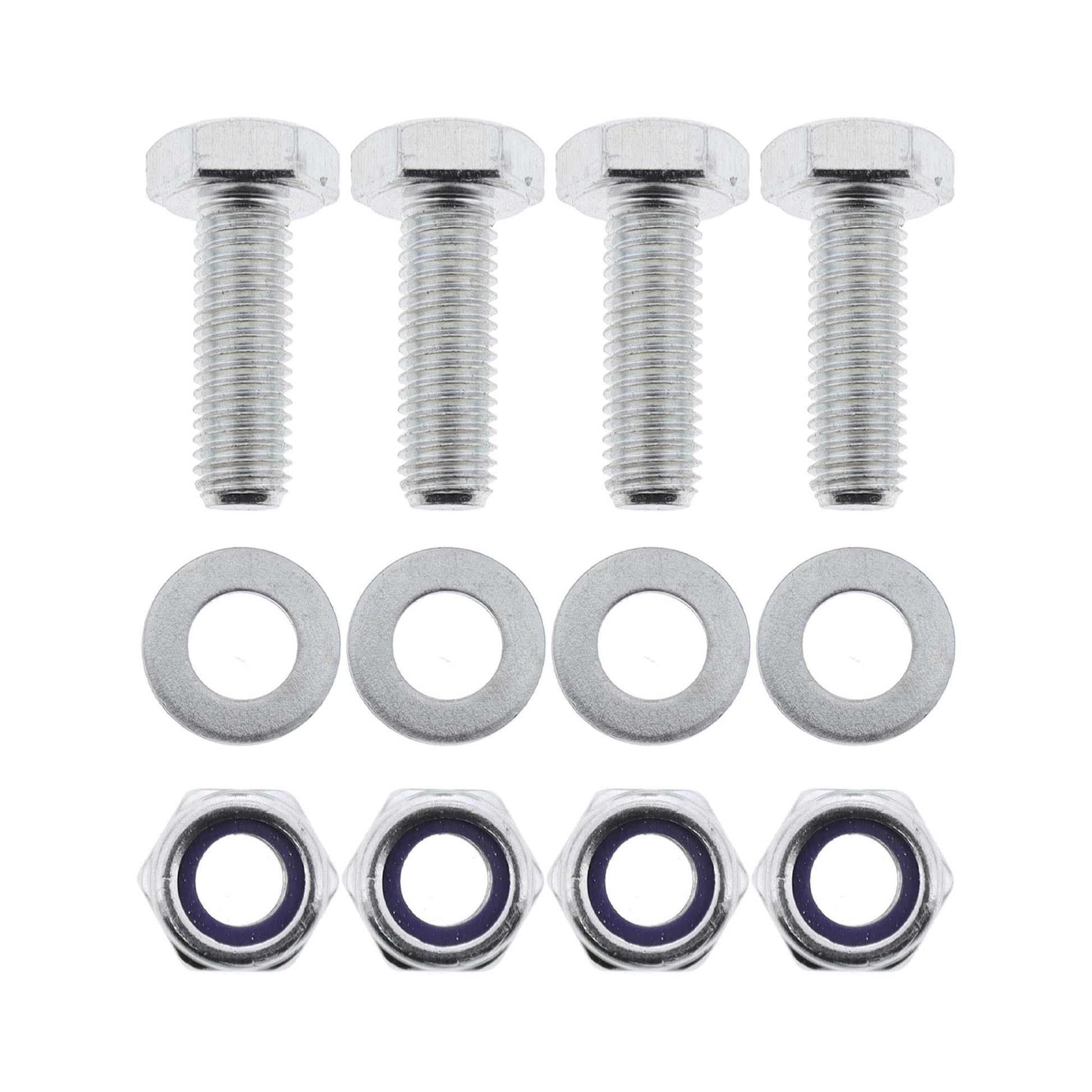

set of screws:

  • 4x M10x30mm screw (tensile strength 8.8)
  • 4x washer Ø10.2mm
  • 4x self-locking M10 nut

Weitere Produktinfos

Hersteller Pro Plus
Artikelnummer T451703-3
EAN 4260584180697
Herstellerangaben PAT Europe BV
Haarspit 1
1724BG Oudkarspel, Niederlande
