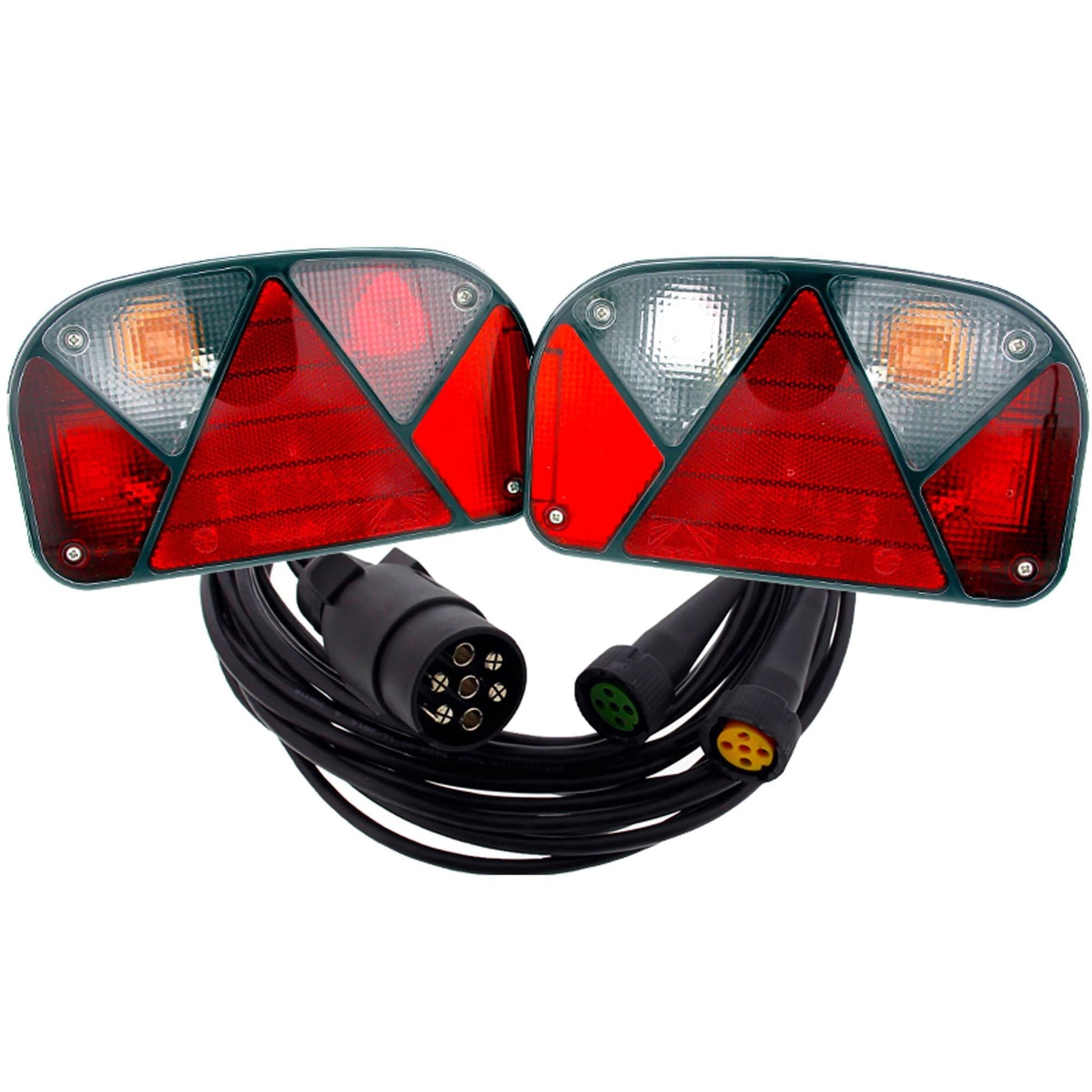

Aspöck Multipoint 2 rear light set 7-pin.

Aspöck Multipoint 2 rear light set

including Aspöck connection cable

with bayonet connection to cable and rear lights

with rear fog light

complete with bulbs

7-pin connector DIN ISO 1724

Tail light set details:

• Manufacturer: Aspoeck Systems

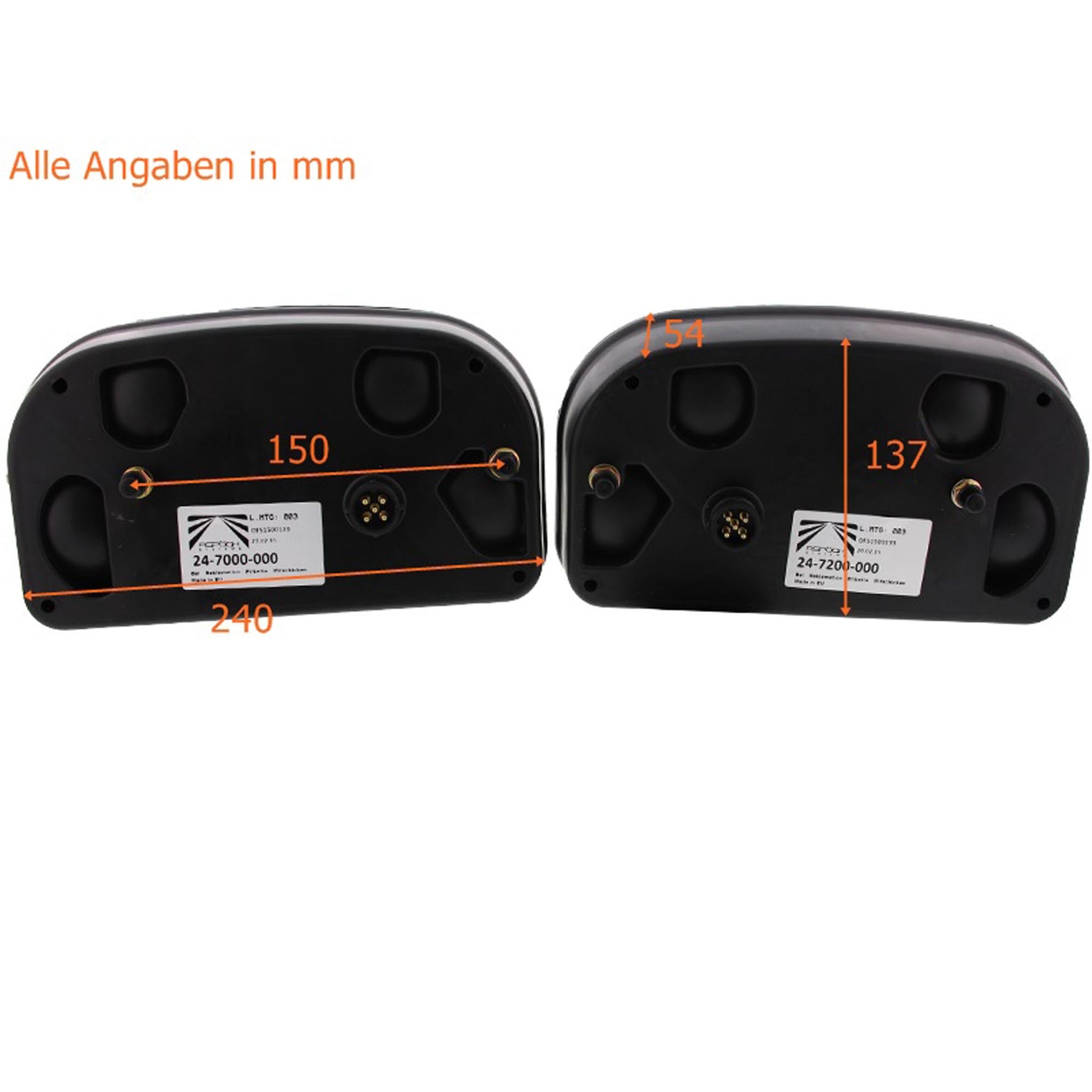

• Dimensions: L x W x H mm = approx. 240 x 137 x 54 mm
• Connection type: bayonet connection
• Distance fastening screws: approx. 150 mm
• complete with bulbs
• E number: E9*1094, E9*1087, E9*1071*1072

Functions rear light set:

• Taillight
• brake light
• indicator
• rear fog light
• Reversing lights optional

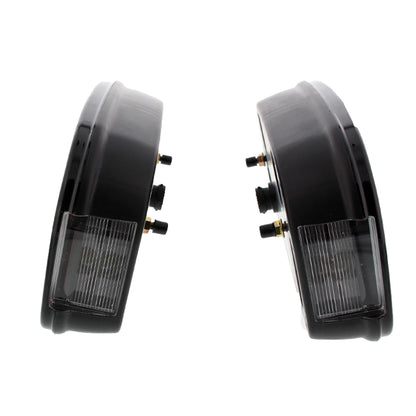

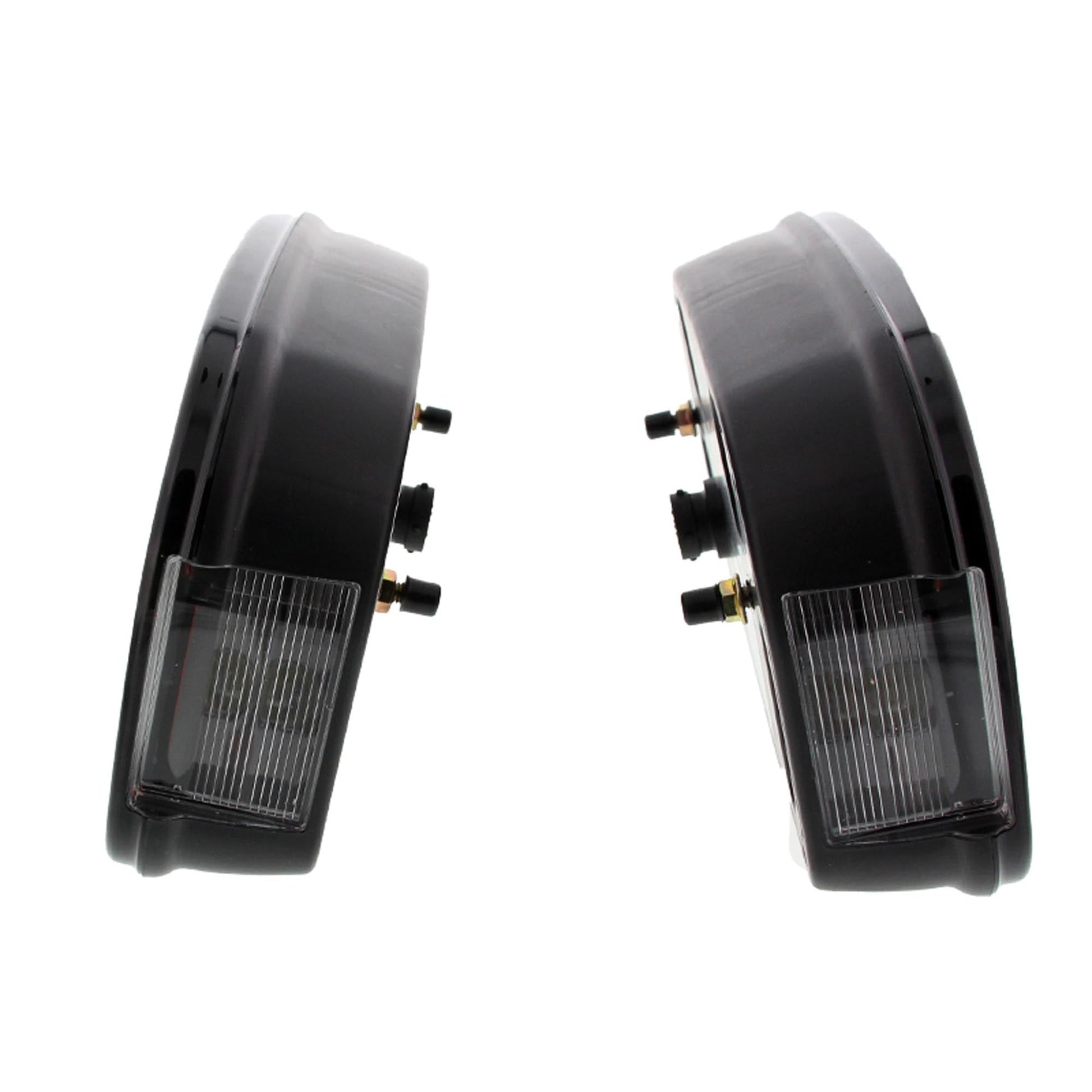

• Side license plate light
• triangular reflector

Description of connection cable:

• Aspöck main cable
• with bayonet lock
• 7-pin connector
• Length: 4.0 meters / 5.0 meters / 7.0 meters / 9.0 meters (selectable in the tab above)

Technical data connection cable:

• 7-pin connector DIN ISO 1724
• 2x 5 pin bayonet connection

Contents:

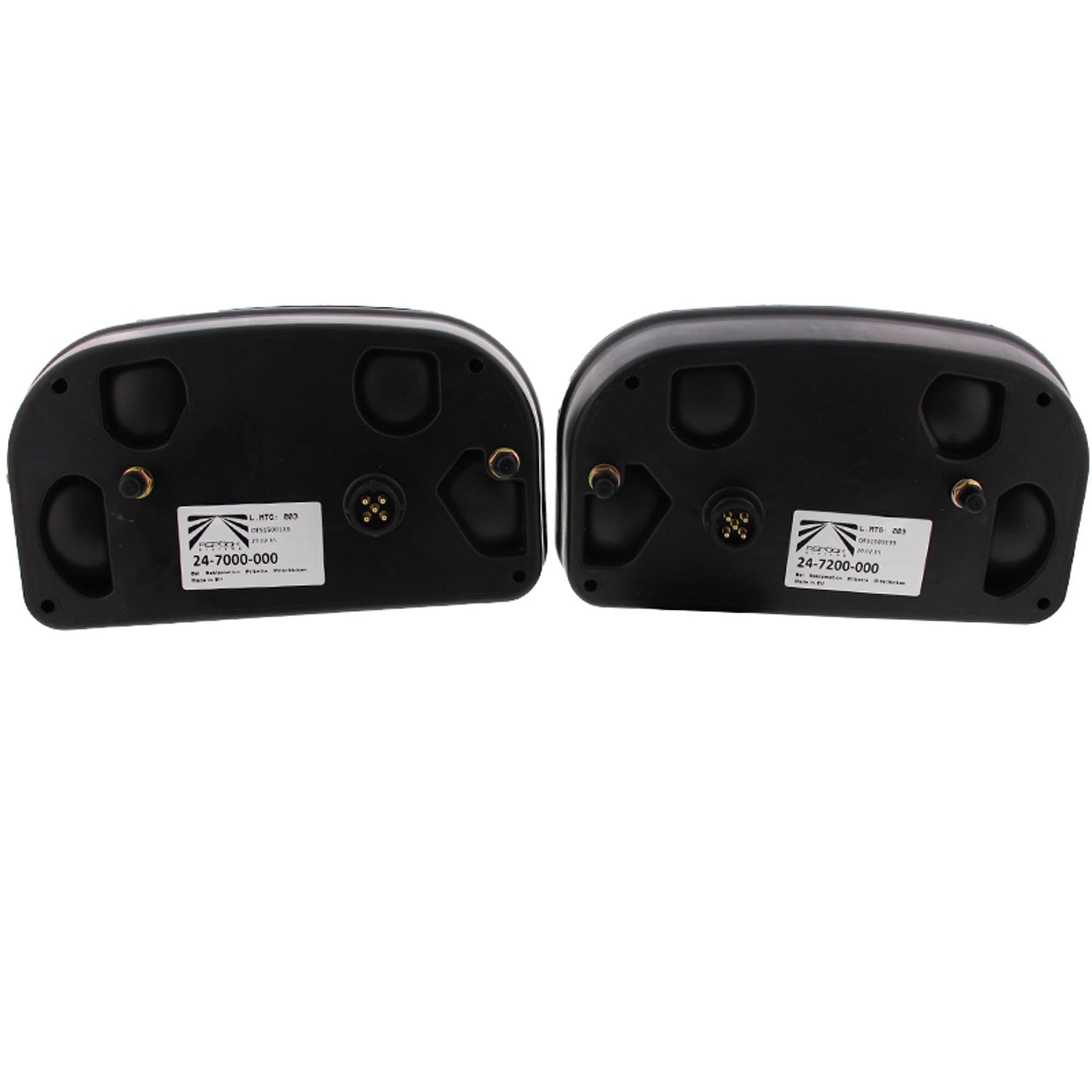

• 1x Aspöck Multipoint 2 rear light left with NSL, Aspöck part number: 24-7000-007
• 1x Aspöck Multipoint 2 rear light right, Aspöck part number: 24-7200-007
• 1x connection cable 7-pin. (Length selectable)

If you have any further questions, please contact us.
