AL-KO AK7 Ausf. B / 750kg Round 60mm

AL-KO

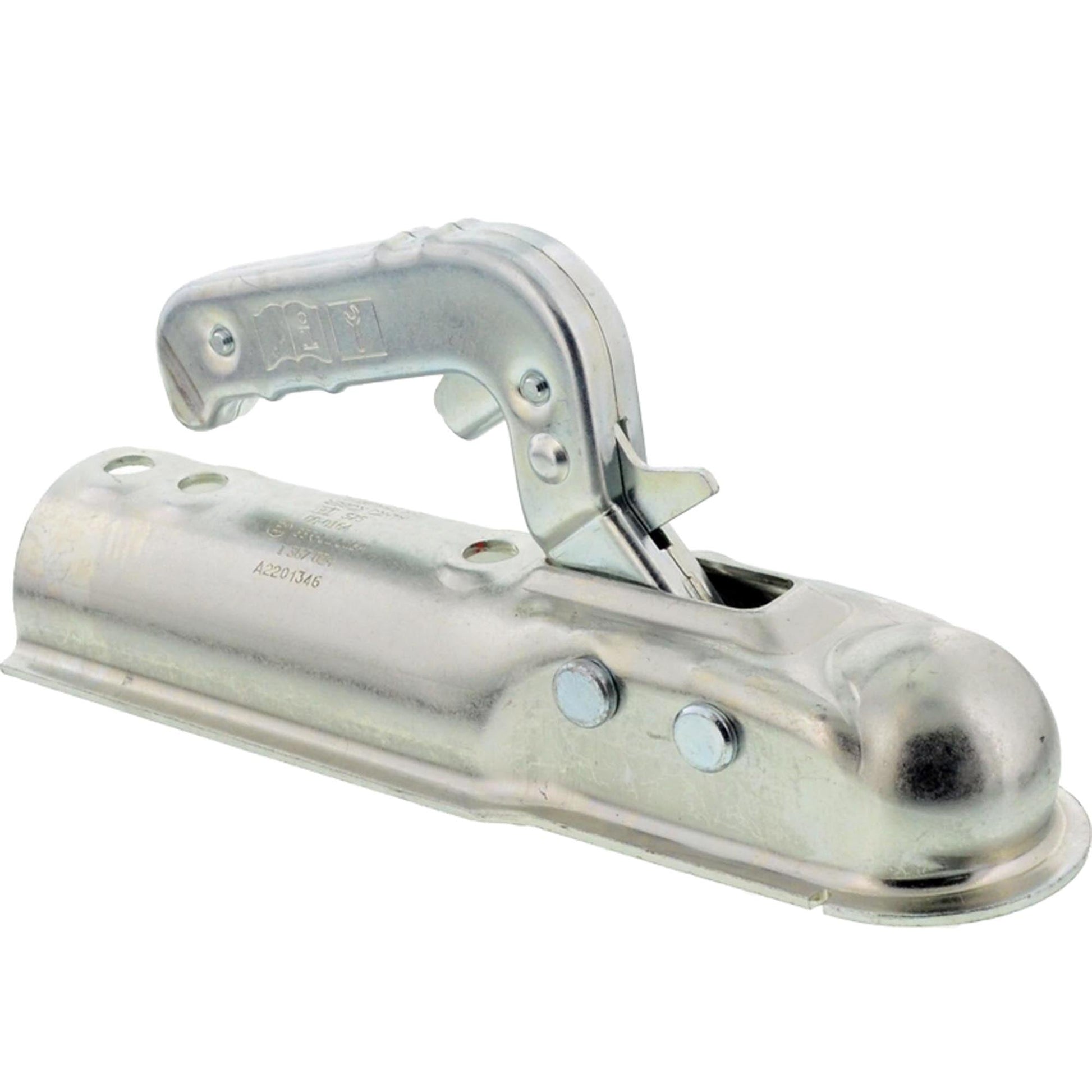

Ball coupling for unbraked single-axle trailers

for Ø60 mm draw tube round

Type: AK 7 Ausf. B

75 kg vertical load

A notice:

The old version with safety indicator is replaced by this new version: Alko No. 1367024

Details:

• Manufacturer: AL-KO
• Type: AK 7 Ausf. B
• Total trailer weight: 750 kg
• Support load: 75 kg
• D value: 7.19
• B 50-X (ball diameter 50mm)
• for Ø60 mm drawbar connection
• Material: galvanized sheet steel
• silver
• Anti-theft device with mortise lock possible
• EC approval 00-0164
• E-approval number: e1 55R-01-0164
• Shipping weight 1.50kg

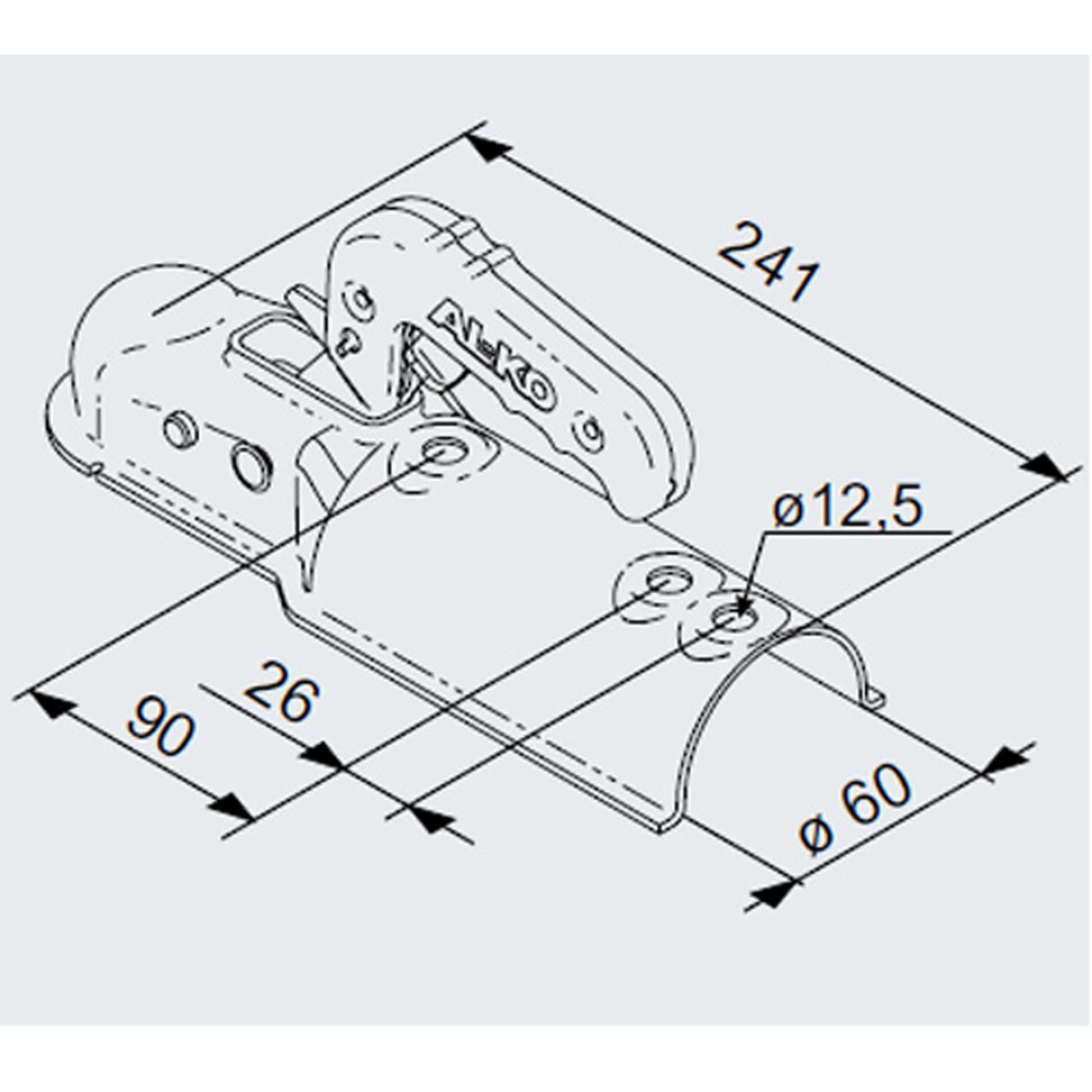

• Fastening hole distance 90mm vertically
• for 2 fastening screws M12, vertical
• with lock holder in the handle
• with safety indicator coupling status and wear on the handle

Offer content:

• 1 x ball coupling AL-KO type: AK 7 plus version B

If you have any questions, please contact us.
