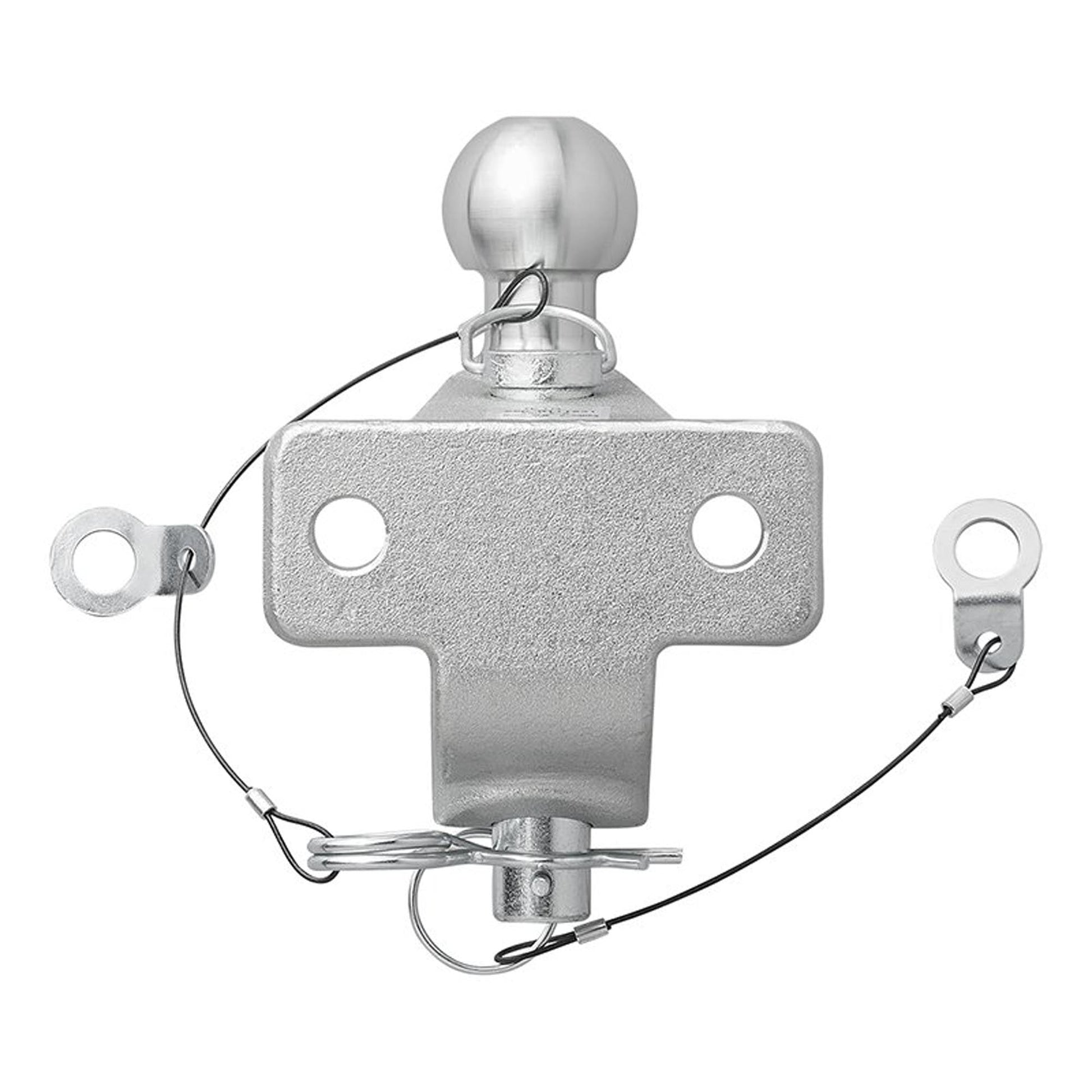

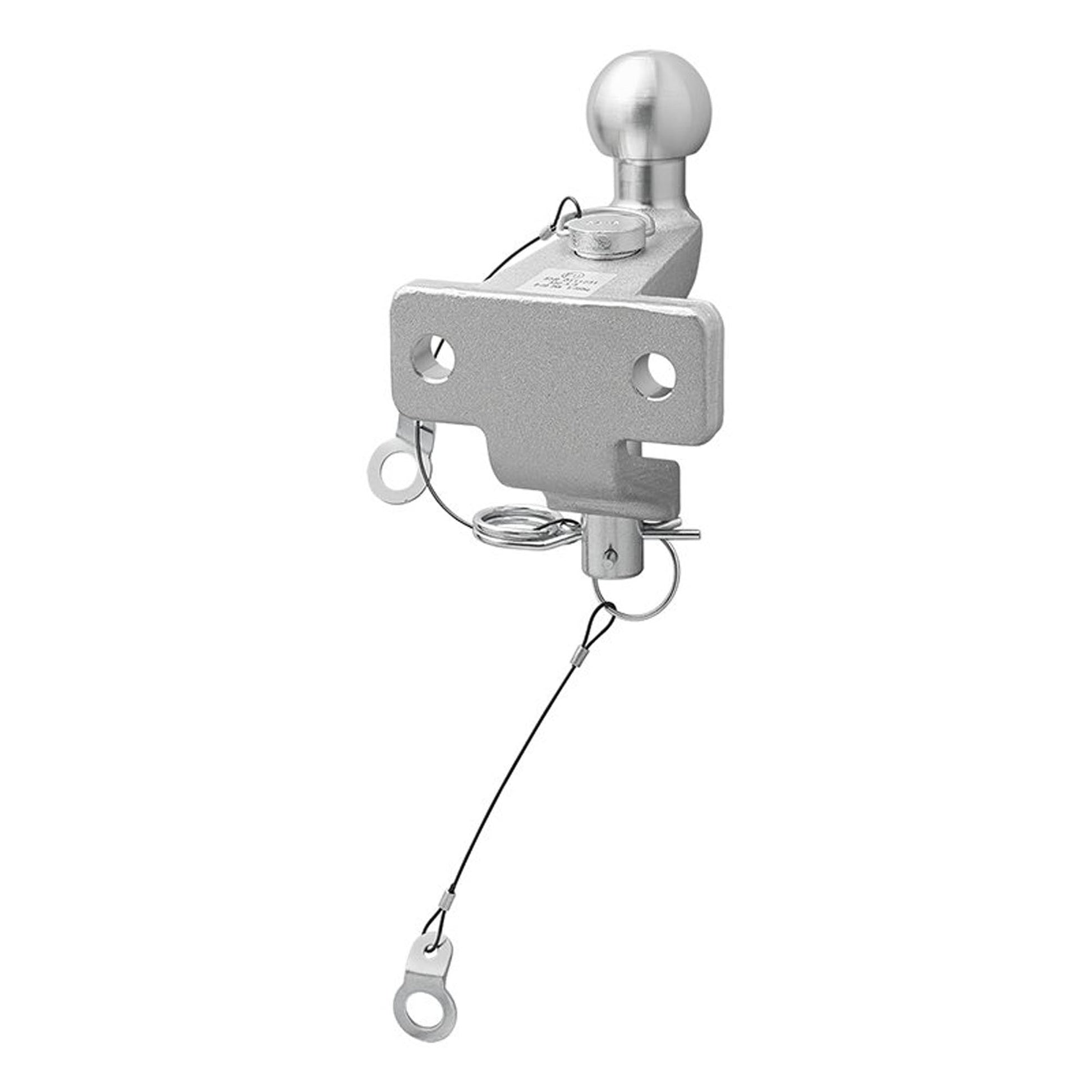

3500kg ball head double version silver D20.2 / S350

trailer ball head for tow ball couplings

Double version

Registration number: E11 55R-0111231

Max. load: 3500kg

Support load: S = 350 kg

Details:

• applicable for tow ball couplings for ball head Ø 50 mm

• can also be used as a wall mount for rear bike racks

• Material:Steel

• Load ball head: 1500 kg

• tow bar load: 3500 kg

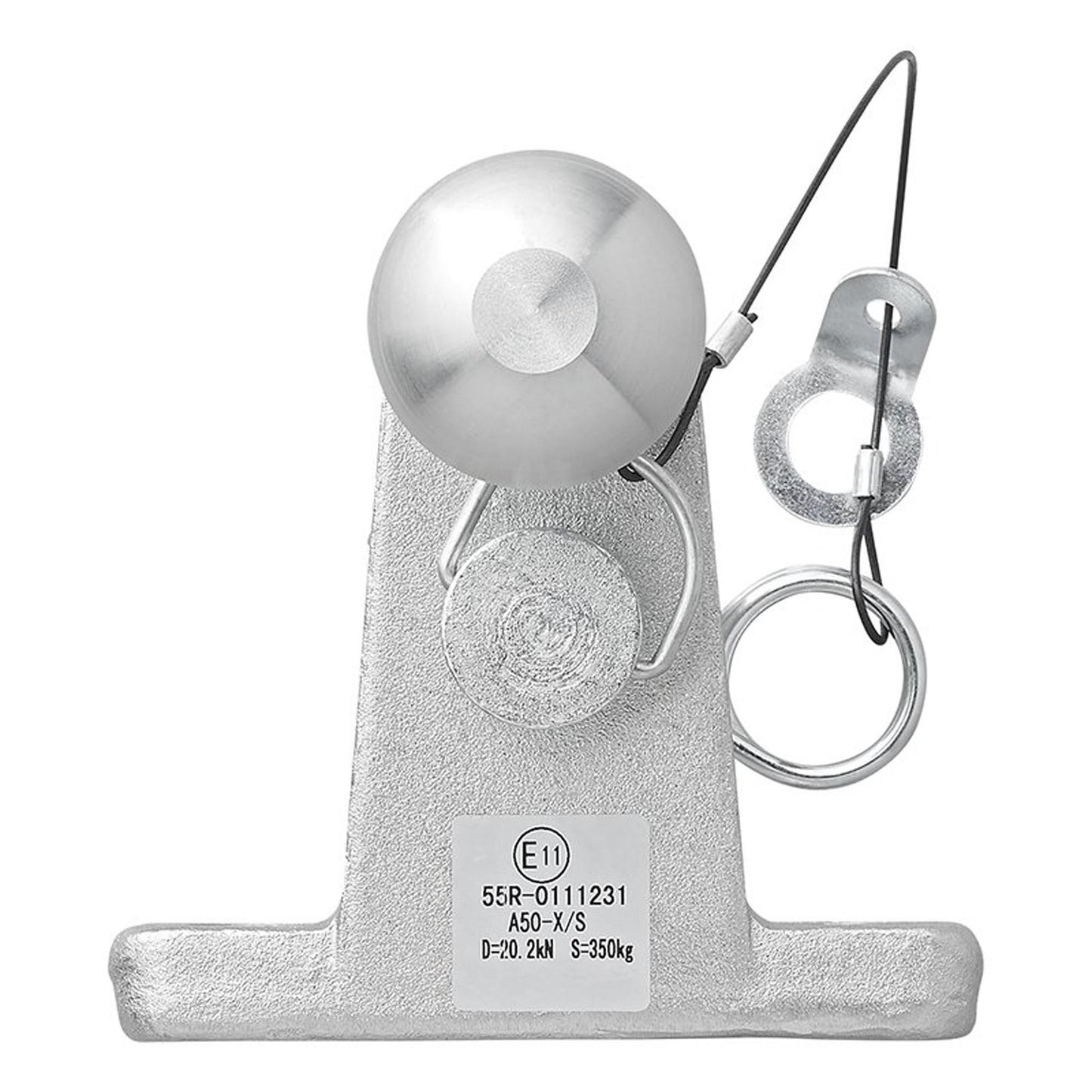

• Registration number: E11 55R-0111231

• D-VALUE: 20.2 KN

• Support load: S = 350 kg

• Class A50-X/S

• Diameter ball head: DIN 50 mm

• stable tension bolt with diameter: 24.5 mm

• Dimensions of flange plate: length 131 mm x width 54 mm

• Diameter of mounting holes: 16 mm

• Hole spacing mounting holes: 90 mm

• Weight: approx. 3.4 kg
